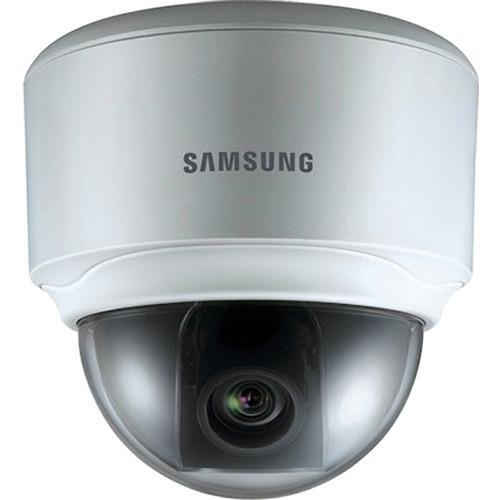

SAMSUNG SND-5080F FLUSH MOUNT DOME NETWORK SECURITY CAMERA HD 720p POE
DAY NIGHTUSD $144.20
Condition : Used
Free Shipping
{{variant_type_name}} :
Notify me when the price drops
We will email you if we find a lower price on this product!
Samsung SND-5080F Network Dome Security Camera HD 720p Flush Mount PoE Day Night REFURB
Features:
Pixels - 1,384(H) x 1,076(V), 1.49M pixels (total)
1,329(H) x 1,049(V), 1.39M pixels (Effective) Scanning Horizontal Frequency - NTSC : 15,734Hz, PAL : 15,625Hz M
Vertical Frequency - NTSC : 59.94Hz, PAL : 50Hz Minimum Illumination Color - 0.3Lux (F1.2, 50 IRE) (Sens Off)
B/W - 0.01Lux (F1.2, 50 IRE) (Sens Off) Functions Privacy Mask - On / Off (12 Programmble zones)
Day & Night - Color / B/W / Auto (ICR)
Backlight Compensation - BLC / HLC / SSDR / Off
Electronic Shutter Speed - Auto (1/30 ~ 30,000sec) / A.FLK / Manual
Gain Control - Low / Medium / High / Manual
Sens-up (Frame Integration) - Auto / Off (Seletable up to 60x)
2D+3D Noise Filter (SSNRIII) - On / Off (Level adjusment)
White Balance - ATW / AWC / Manual / Indoor / Outdoor
On Screen Display - Yes (Camera title support) Resolution 1.3M (1280 x 1024) Video Output VBS 1.0Vp-p S/N Ratio (Video) 52dB Lens Focal Length - 2.8-10mm
Zoom Ratio - 3.6x
Aperature Ratio - F1.2
Angular Field of View - H : 94.6°(Wide) -28.8°(Tele) / V : 68.4°(Wide) - 21.6°(Tele)
Lens Drive Type - AI (DC)
Mount Type - Board type Operating Temperature -10°C ~ +50°C (+14°F ~ +122°F) Operating Humidity 0 - 90% RH Power Requirements Dual (12V DC / 24V AC), PoE Power Consumption Max. 7W LED Indicators Yes Dimensions 6.3 x 4.92 (160 x 125 mm) Weight 1.69lb (765g) Color / Case White / Plastic Network Operating System Embedded Linux Hardware Memory - Flash - 128M byte, RAM - 256M byte, SD Memory Slot (SD/SDHC)
Ethernet - RJ-45 (10/100 Base-T)
Video Out - VBS 1.0Vp-p
Audio - Line in / Line out
PoE - Yes (IEEE802.3af) Alarm I/O 1ea / 1ea Video Compression - H.264 / MPEG-4 / MJPEG Multiple codec
Resolution - SXGA - 1280 x 1024, HD (16 : 9) - 1280 x 720P
SVGA - 800 x 600, VGA - 640 x 480, QVGA - 320 x 240
Maximum Frame Rate - SXGA : 22fps, HD / SVGA / VGA / QVGA : 30fps
H.264 / MPEG-4 Quality - Compression : 5 ~ 100 (20 steps), Target bitrate (CBR mode only) : 1 ~ 10 level
MJPEG Quality - 1 - 20 level
Bitrate Control - H.264 / MPEG-4 : VBR / CBR, MJPEG : VBR
Streaming -H.264 / MPEG-4/ MJPEG multiple streaming (Individual streaming simultaneously) Audio Audio Compression - G.711 u-law
Bi-Directional Communication - Yes Motion Detection Intelligent Motion Detection - Scene change, Virtual line, Enter/Exit, Appear/Disappear Protocol IPv4 - TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP,FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, ONVIF
IPv6 - TCP/IP, HTTP, HTTPS, SSL, DHCP
Streaming - Unicast, Multicast
Security - HTTPS (SSL) login authentication, Digest login authentication, IP address filtering, User access log
DDNS - Supporting samsung DDNS and public DDNS services Connection Maximum User Access - Max. 10 users at Unicast mode, Max. 20 users at Multicast mode
User Access Level - Full control privilege (Administrator), Live monitoring only(Guest), Configurable privilege individually (Additional User) Event Management Alarm Input - Pre/Post alarm image buffering, Image recording : SD memory
Intelligent Video Detection - Event notification, Alarm out activation, E-mail notification
Schedule - JPEG Image transfer : FTP, Image recording : SD memory Web Browser Access Supported OS - Windows XP, VISTA 7, Mac OS
Supported Web Browsers - Internet Explorer 6.0 or Higher, Firefox, Google Chrome, Safari
PTZ Control - Digital PTZ based on Mega Pixel Resolution
Plug-in - MS SilverLight 4.0
UI Language - English, French, German, Spanish, Italian, Chinese, Korean,Russian, Japanese, Swedish, Danish, Portuguese
Software Upgrade - Using web viewer UI Video Player RTP / RTSP Streaming - Quicktime, VLC player Video Management Software Samsung CMS S/W, 3rd party S/W application Application IP installer application for all Samsung IP devices
Features:
- Up to 1.3 MP (1280 x 1024) Resolution
- 16:9 HD (720p) Resolution Support
- 3.6x Zoom Lens (2.8-10mm)
- Day/Night Camera with IR Cut Filter
- H.264, MPEG-4 & MJPEG Triple Codec
- Digital Noise Reduction (3D+2D)
- Privacy Masking (up to 12 zones)
- Motion Detection
- Bi-directional Audio Support
- SD Card Slot for Internal Recording
Pixels - 1,384(H) x 1,076(V), 1.49M pixels (total)
1,329(H) x 1,049(V), 1.39M pixels (Effective) Scanning Horizontal Frequency - NTSC : 15,734Hz, PAL : 15,625Hz M
Vertical Frequency - NTSC : 59.94Hz, PAL : 50Hz Minimum Illumination Color - 0.3Lux (F1.2, 50 IRE) (Sens Off)
B/W - 0.01Lux (F1.2, 50 IRE) (Sens Off) Functions Privacy Mask - On / Off (12 Programmble zones)
Day & Night - Color / B/W / Auto (ICR)
Backlight Compensation - BLC / HLC / SSDR / Off
Electronic Shutter Speed - Auto (1/30 ~ 30,000sec) / A.FLK / Manual
Gain Control - Low / Medium / High / Manual
Sens-up (Frame Integration) - Auto / Off (Seletable up to 60x)
2D+3D Noise Filter (SSNRIII) - On / Off (Level adjusment)
White Balance - ATW / AWC / Manual / Indoor / Outdoor
On Screen Display - Yes (Camera title support) Resolution 1.3M (1280 x 1024) Video Output VBS 1.0Vp-p S/N Ratio (Video) 52dB Lens Focal Length - 2.8-10mm
Zoom Ratio - 3.6x
Aperature Ratio - F1.2
Angular Field of View - H : 94.6°(Wide) -28.8°(Tele) / V : 68.4°(Wide) - 21.6°(Tele)
Lens Drive Type - AI (DC)
Mount Type - Board type Operating Temperature -10°C ~ +50°C (+14°F ~ +122°F) Operating Humidity 0 - 90% RH Power Requirements Dual (12V DC / 24V AC), PoE Power Consumption Max. 7W LED Indicators Yes Dimensions 6.3 x 4.92 (160 x 125 mm) Weight 1.69lb (765g) Color / Case White / Plastic Network Operating System Embedded Linux Hardware Memory - Flash - 128M byte, RAM - 256M byte, SD Memory Slot (SD/SDHC)
Ethernet - RJ-45 (10/100 Base-T)
Video Out - VBS 1.0Vp-p
Audio - Line in / Line out
PoE - Yes (IEEE802.3af) Alarm I/O 1ea / 1ea Video Compression - H.264 / MPEG-4 / MJPEG Multiple codec
Resolution - SXGA - 1280 x 1024, HD (16 : 9) - 1280 x 720P
SVGA - 800 x 600, VGA - 640 x 480, QVGA - 320 x 240
Maximum Frame Rate - SXGA : 22fps, HD / SVGA / VGA / QVGA : 30fps
H.264 / MPEG-4 Quality - Compression : 5 ~ 100 (20 steps), Target bitrate (CBR mode only) : 1 ~ 10 level
MJPEG Quality - 1 - 20 level
Bitrate Control - H.264 / MPEG-4 : VBR / CBR, MJPEG : VBR
Streaming -H.264 / MPEG-4/ MJPEG multiple streaming (Individual streaming simultaneously) Audio Audio Compression - G.711 u-law
Bi-Directional Communication - Yes Motion Detection Intelligent Motion Detection - Scene change, Virtual line, Enter/Exit, Appear/Disappear Protocol IPv4 - TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP,FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, ONVIF
IPv6 - TCP/IP, HTTP, HTTPS, SSL, DHCP
Streaming - Unicast, Multicast
Security - HTTPS (SSL) login authentication, Digest login authentication, IP address filtering, User access log
DDNS - Supporting samsung DDNS and public DDNS services Connection Maximum User Access - Max. 10 users at Unicast mode, Max. 20 users at Multicast mode
User Access Level - Full control privilege (Administrator), Live monitoring only(Guest), Configurable privilege individually (Additional User) Event Management Alarm Input - Pre/Post alarm image buffering, Image recording : SD memory
Intelligent Video Detection - Event notification, Alarm out activation, E-mail notification
Schedule - JPEG Image transfer : FTP, Image recording : SD memory Web Browser Access Supported OS - Windows XP, VISTA 7, Mac OS
Supported Web Browsers - Internet Explorer 6.0 or Higher, Firefox, Google Chrome, Safari
PTZ Control - Digital PTZ based on Mega Pixel Resolution
Plug-in - MS SilverLight 4.0
UI Language - English, French, German, Spanish, Italian, Chinese, Korean,Russian, Japanese, Swedish, Danish, Portuguese
Software Upgrade - Using web viewer UI Video Player RTP / RTSP Streaming - Quicktime, VLC player Video Management Software Samsung CMS S/W, 3rd party S/W application Application IP installer application for all Samsung IP devices
